M50
Progressive scan high speed LOW cost!, DSP @75MHz
Just to make it clear WHO's the world's smallest smart camera...
 Now
even smaller, with VCSBC50: open frame
(60x60x10mm), OEM priced version!
Or VCSBC4018, much more powerful, yet very
low cost.
Need megapixel? see VCSBC4016 at 1024x768.

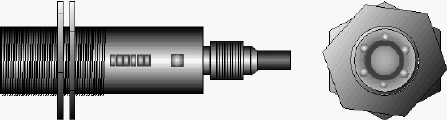

...in a rugged 30mm diameter case: progressive scan CCD sensor, DSP processor, grabber, I/O's,
lens and LED light source, serial port!
An innovative machine vision sensor with exceptionally small size and
unbelievably low cost: Low cost
- 1/4" CCD 640x480 Progressive Scan sensor w async reset
- 75MHz DSP
- 8M RAM, 80K RAM, 512K Flash EEPROM
- Electronic Shutter 0.5 µsec - 4 sec (0.5 µsec increments)
 Built
in lens or (optional) C-mount
A rugged, extremely small, standalone machine vision sensor you can use as
easily as a photocell: smallest footprint and very low cost.
Async reset CCD sensor suitable for fast moving parts.
8MRAM are provided in addition to memory made available by the DSP (16Kw/16bit DMEM + 16K/24b
PMEM); 512K non-volatile Flash memory are provided for programs and parameters.
A video output is not provided: a pushbutton and red/green/amber status LEDs for the
I/Os
are available. A built in LED projector can visualize the field of view in order
to support easy setup and focusing.
A special version with C-mount lens adapter is also available for M40 and M50
ALSO AVAILABLE:
Family map: All models of Mxx
family
[Need more speed?
enough of 1200MIPS? Click here!]
> |
