VC SBC 50

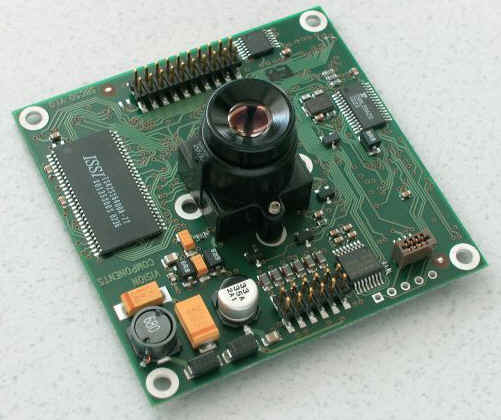

VCSBC50: miniature progressive scan smart camera 640x480, DSP @ 75MHz, lowest cost, great for OEMs.
B/W or Color

Low cost smart camera

Extremely Low price!
ADSP2185 (375MIPS) DSP
640x480 CCD 1/4" B/W or Color, shutter 33usec...2 second, async reset, full frame (25fps) or binning x2, x4 (50-100 fps)
Smallest size 60x60x10mm (lens holder & lenti not included), weight 20g (40 w optional C/CS adapter)
Video output: NOT AVAILABLE
2 IN max 24V, 4 OUT max 24V 400mA, strobe light control output.
12 IN TTL 3.3V, 2 OUT TTL 3.3V
RS232 @ 115K baud
9-36Vcc power supply (nominal 12-24Vcc), 1.5W
12mm diam lenses, selection guide for several focal lengths, optional C/CS holder.

Specifically designed for high volume OEMs: cost above 100 parts ordered is lowest in Industry: hsee it here!

Download manuals HEREI

[Need more speed? Enough of 1200MIPS @ 113fps bastano? Click here!]

More models in ther SMARTVIEW range are HERE
